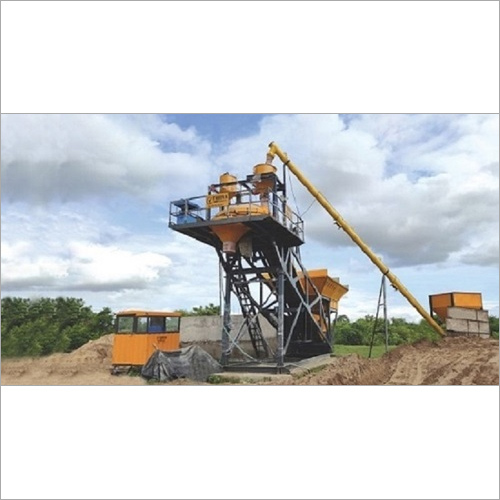

Automatic Compact Concrete Batching Plant

Automatic Compact Concrete Batching Plant

2050000 INR/Unit

Product Details:

  • Product Type Automatic Compact Concrete Batching Plant
  • Type Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant
  • Automatic Yes
  • Control System PLC Control
  • Feature High Speed, Low Energy Consumption, High Efficiency, Good Quality
  • Warranty 1Year
  • Supply Ability : 5 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 2050000.00 - 3750000.00 INR/Unit
  • 2050000 INR/Unit
  • 1 Unit

Product Specifications

  • High Speed, Low Energy Consumption, High Efficiency, Good Quality
  • 1Year
  • Automatic Compact Concrete Batching Plant
  • PLC Control
  • Yes
  • Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant

Trade Information

  • 5 Unit Per Month
  • 1-2 Week
  • Africa, Middle East, Asia
  • All India

Product Description



Other Details:



Brand/Make

Terra Equipment

Model/Type

TSC series

Control Panel Type

Fully automatic PLC based control panel

Aggregate Storage Type

14 CUM

Concrete Discharge Height

4.2 meter from ground level

Main Motor Power Hp

20 HP

Output Per Batch

20 CM/ Hr t

Storage And Feeding Unit

2 x 2 cross bin feeder

Suggested Dg Set Kva

62 KVA



Model

TSC 20

TSC 25

TSC 30

TSC 45

TSC 60

Output capacity

20 CM/ Hr.

25 CM/Hr.

30 CM/Hr.

45 CM/Hr.

60 CM/ Hr.

Plant assembly

Whole assembly on single chassis

Mixer type

Turbo pan type mixer/ twin shaft mixer

Main reduction gear

Imported Planetary gear box

Main mixer drive

20 HP

25 HP

30 HP

40 HP

50 HP

Material storage system

2 x 2 cross bin feeder

Material storage capacity

14 CM

14 CM

20 CM

25 CM

30 CM

Material weighing system

Digital load cell based weighing system

Material feeding system

Through inclined belt conveyor

Cement feeding system

Through inclined screw conveyor

Water weighing system

Digital load cell based weighing of water in separate tank

Admixture dozing system

Digital load cell based auto admixture dozing system

Control panel

Fully automatic PLC based control panel

Total connected load

48 HP

53 HP

63 HP

77 HP

98 HP

Suggested DG set

62 KVA

62 KVA

82 KVA

100 KVA

125 KVA


TERRA EQUIPMENT
