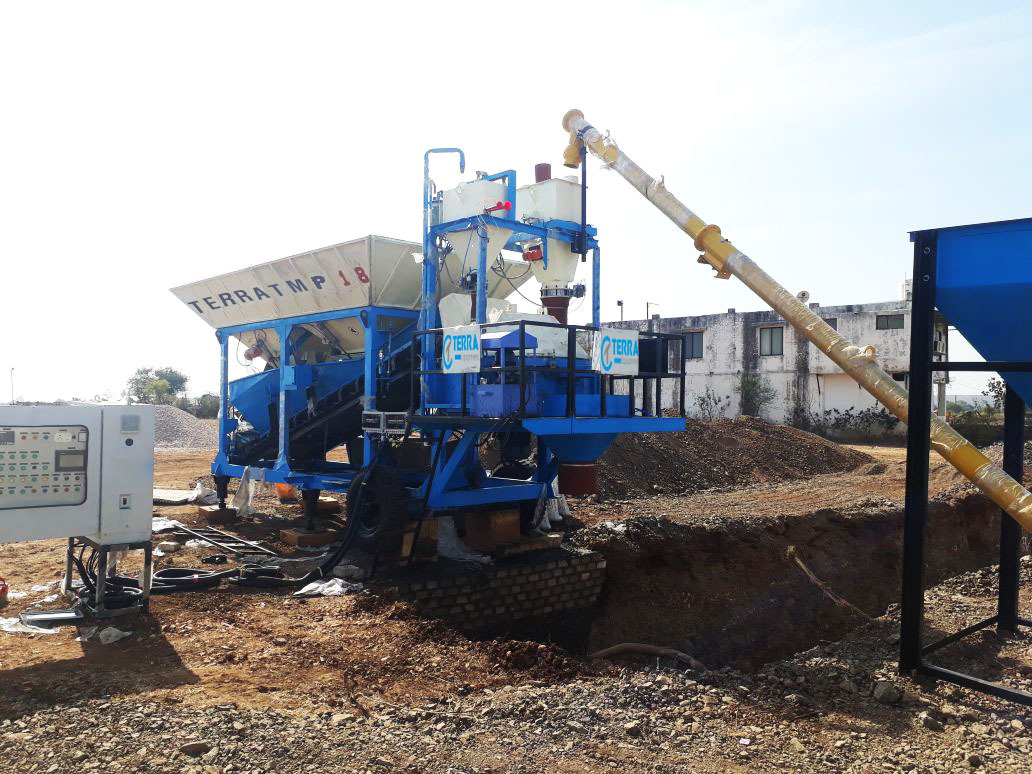

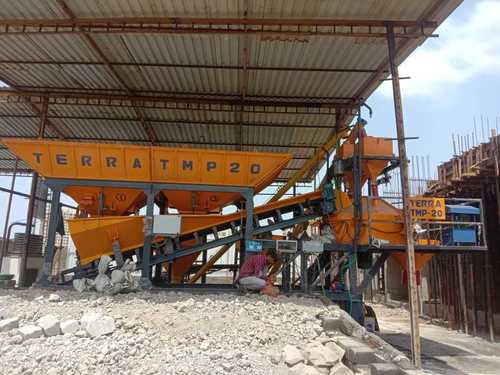

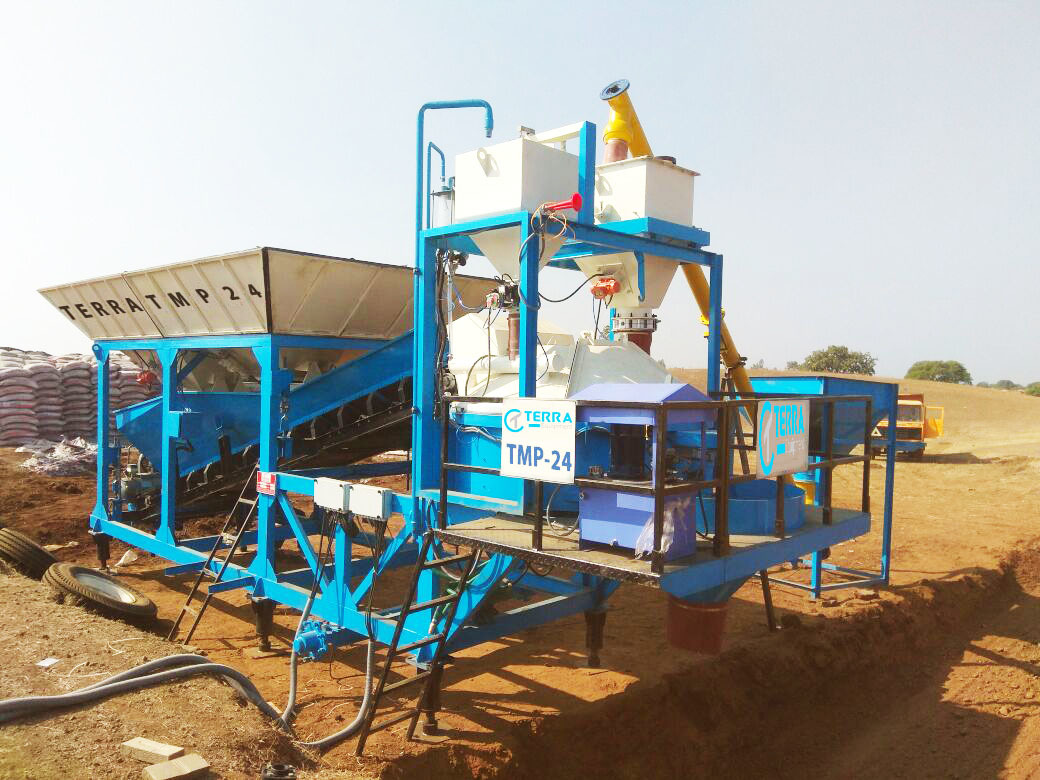

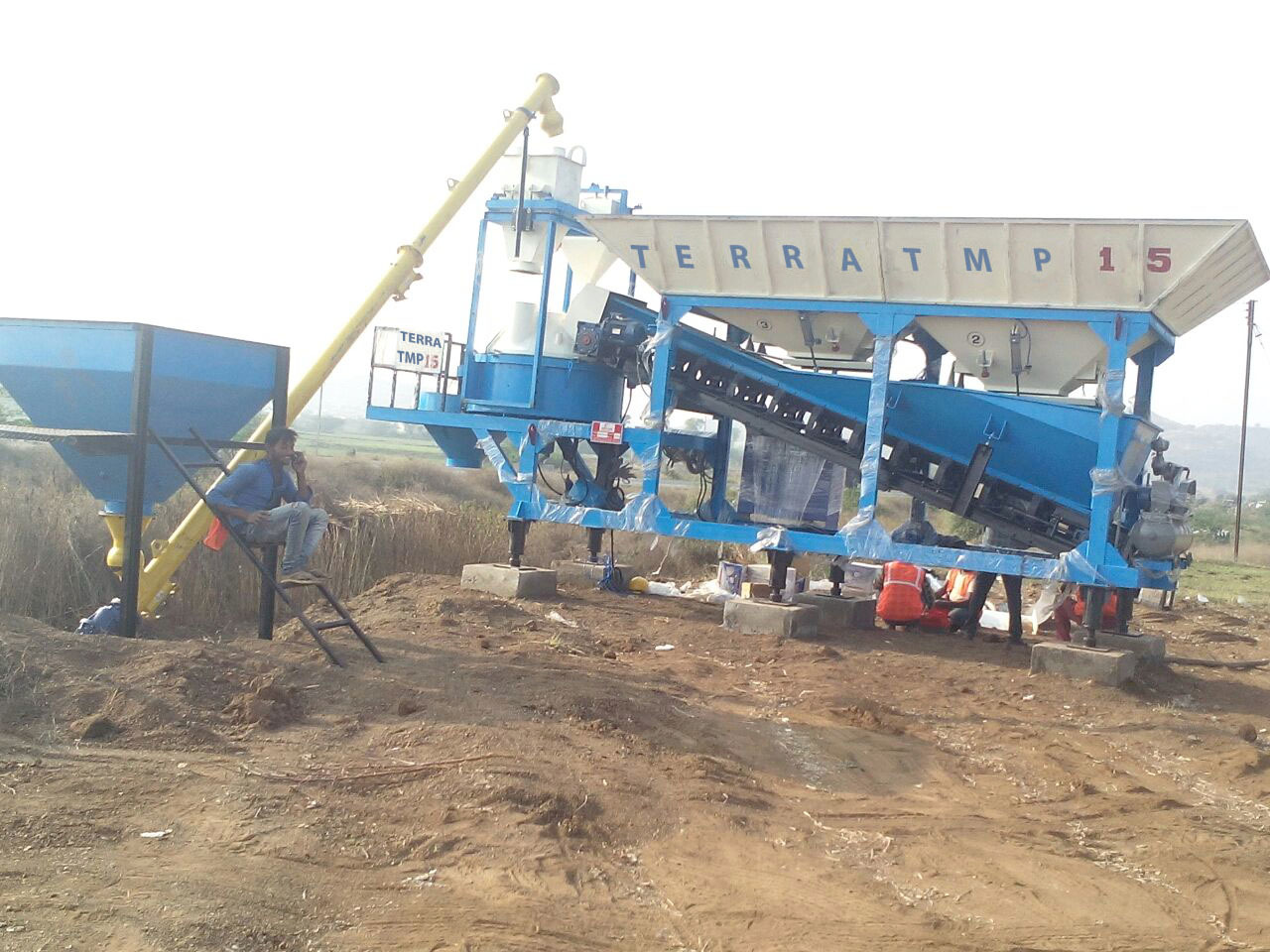

This computerized Mobile Concrete Batching Plant is offered with 1 year of warranty. Available in three different models, this plant has 15 CUM/h to 30CUM/h output capacity. It uses turbo pan type mixer that has spring equipped arms, Digital load cell based material weighing system of this plant can measure weight of water, cement and aggregate separately. Provided Mobile Concrete Batching Plant is mounted on single chassis. Its D.G. set has 40 KVA to 62 KVA power capacity. Its concrete discharging height is 1 meter from installation ground. PLC based operation is one of its key aspects.

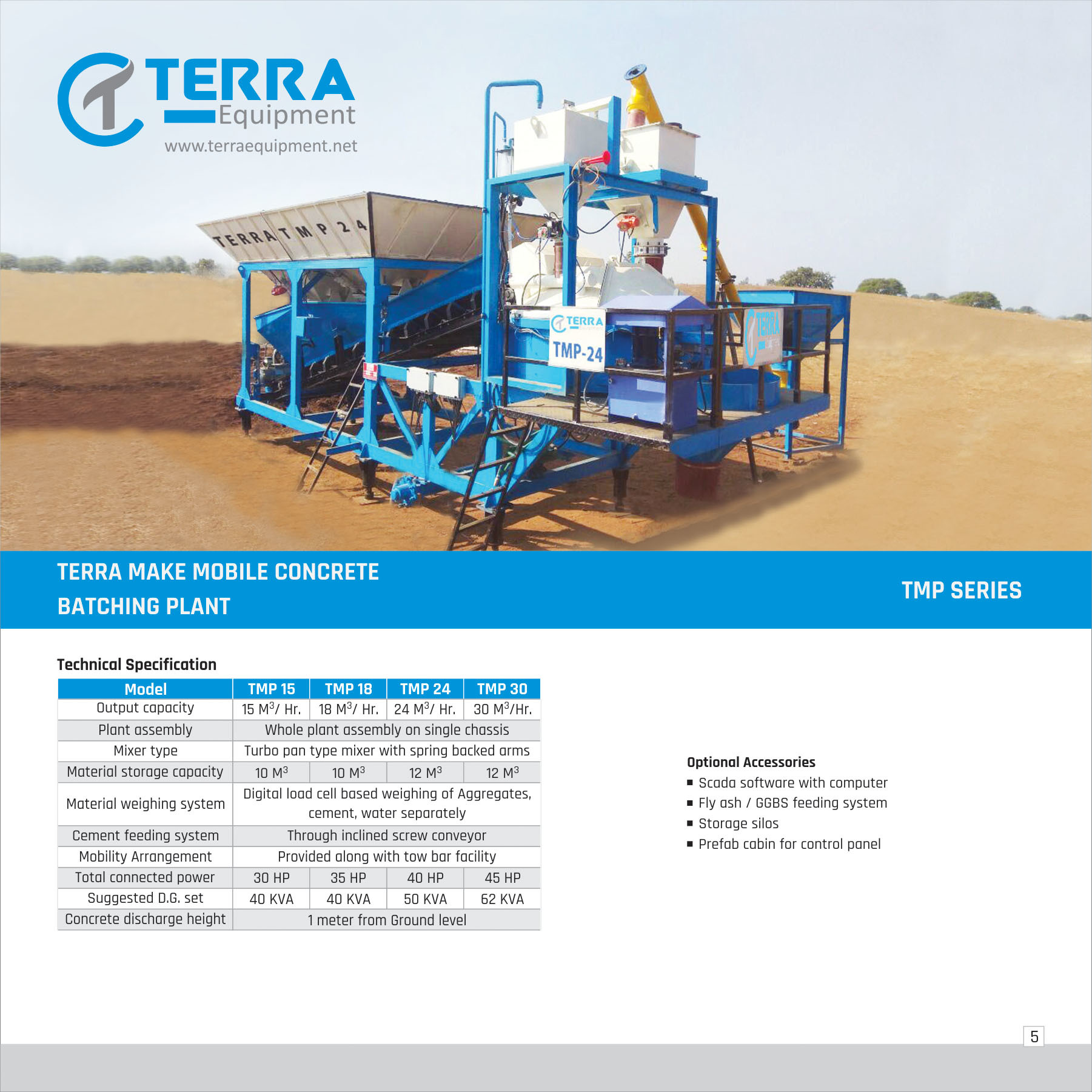

Specification
Model | TMP 15 | TMP 18 | TMP 24 | TMP 30 |
Output capacity | 15 CUM/ Hr. | 18 CUM/ Hr. | 24 CUM/ Hr. | 30 CUM/Hr. |
Plant assembly | Whole plant assembly on single chassis | |||
Mixer type | Turbo pan type mixer with spring backed arms | |||
Material storage capacity | 10 CuM | 10 CuM | 12 CuM | 12 CuM |
Material weighing system | Digital load cell based weighing of Aggregates ,cement ,water separately | |||
Cement feeding system | Through inclined screw conveyor | |||
Mobility Arrangement | Provided along with tow bar facility | |||
Total connected power | 30 HP | 35 HP | 40 HP | 45 HP |
Suggested D.G. set | 40 KVA | 40 KVA | 50 KVA | 62 KVA |
Concrete discharge height | 1 meter from Ground level |
![]() |
