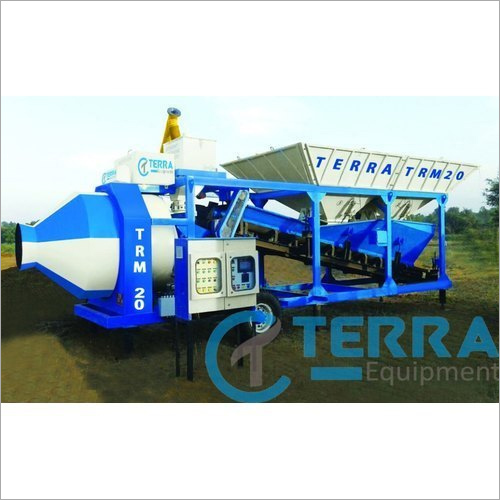

Mobile Concrete batching plant with reversible drum type mixer
Mobile Concrete batching plant with reversible drum type mixer Mobile Concrete batching plant with reversible drum type mixer Mobile Concrete batching plant with reversible drum type mixer

Mobile Concrete batching plant with reversible drum type mixer

1250000 INR/Unit

Product Details:

  • Product Type Mobile Concrete Batching Plant with Reversible drum type mixer
  • Type Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant
  • Automatic Yes
  • Warranty 1 Year
  • Supply Ability : 5 Per Month
  • Click to view more
X

Price And Quantity

  • 1250000.00 - 1750000.00 INR/Unit
  • 1250000 INR/Unit
  • 1 Unit

Product Specifications

  • Yes
  • 1 Year
  • Mobile Concrete Batching Plant with Reversible drum type mixer
  • Mobile Concrete Batching Plant, Modular Concrete Mixing Machine, Concrete Mixing Plant

Trade Information

  • 5 Unit Per Month
  • 1-2 Week
  • All India

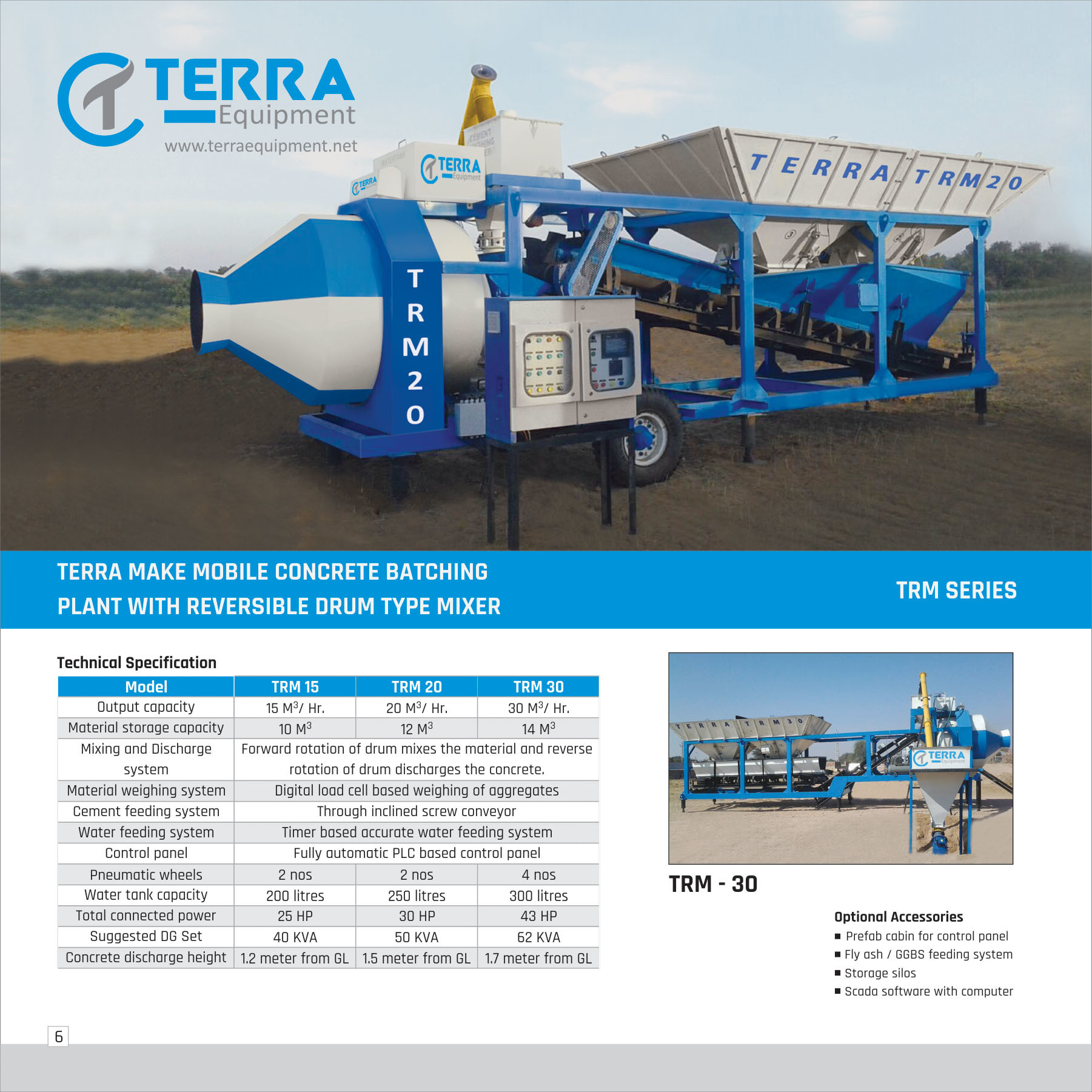

Product Description



Model

TRM 15

TRM 20

TRM 30

Output capacity

15 CuM/ Hr.

20 CuM/ Hr.

30 CuM/Hr

Material storage capacity

10 CuM

12 CuM

14 CuM

Mixing and Discharge system

Forward rotation of drum mixes the material and reverse rotation of drum discharges the concrete.

Material weighing system

Digital load cell based weighing of aggregates

Cement feeding system

Through inclined Screw conveyor

Water feeding system

Timer based accurate water feeding system

Control panel

Fully automatic PLC based control panel

Pneumatic wheels

2 nos

2 nos

4 nos

Water tank capacity

200 litres

250 litres

300 litres

Total connected power

25 HP

30 HP

43 HP

Suggested DG Set

40 KVA

50 KVA

62 KVA

Concrete discharge height

1.2 meter from GL

1.5 meter from GL

1.7 meter from GL
